Fire Rated Access Panels(Picture Frame)

Fire Rated Access Panels(Picture Frame)

FEATURES&OPTIONS





SPECIFICATION

●1 hour fire rated(1 FR)option

●Picture Frame(PF)

●Manufactured to order

●1.2mm zintec steel

●CNC manufactured to ISO9001:2015

●Budget Lock

●Frame options to suit finishing requirements

●Compression seal gasket

●Fully matt powder coated,suitable for finishing on site

●Anti-bacterial specialist coating option

●Acoustic 32dB

E-mail : [email protected]

Product Details



Part No.

Standard size(mm&inch)

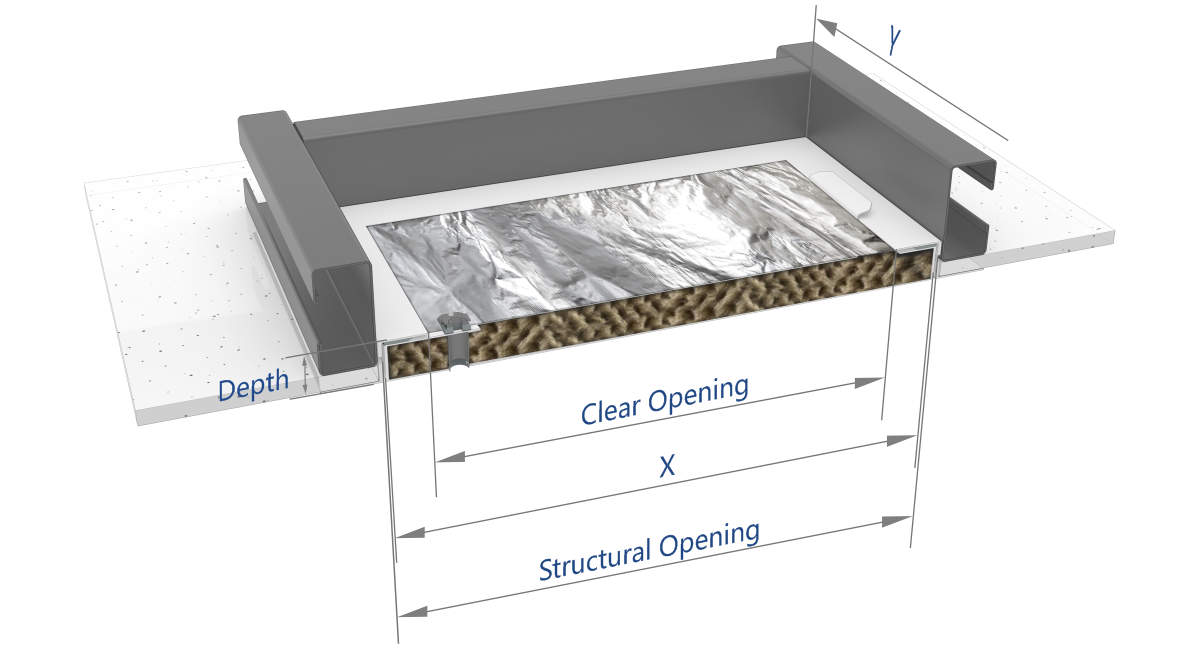

Structural opening

X&Y(mm)

Clear opening

Depth(mm)

FZFR2020PF

200x200

8x8

205x205

200x200

140x150

45

FZFR3030PF

300x300

12x12

305x305

300x300

240x250

45

FZFR3060PF

300x600

12x24

305x605

300x600

240x550

45

FZFR4545PF

450x450

18x18

455x455

450x450

390x400

45

FZFR5555PF

550x550

22x22

555x555

550x550

490x500

45

FZFR6060PF

600x600

24x24

605x605

600x600

540x550

45

FZFR6090PF

600x900

24x36

605x905

600x900

540x850

45

FZFR9090PF

900x900

36x36

905x905

900x900

840x850

45

FZFR60120PF

600x1200

24x48

605x1205

600x1200

540x1155

45

Bespoke sizes upon request
