Where Should You Install HVAC Access Panels?
In Ductwork: For easy inspection and cleaning.
Near HVAC Units: To access controls or components.
In Ceilings or Walls: To hide and access ventilation systems.
2025.08.23
FEATURES&OPTIONS
SPECIFICATION
• non fire rated option
• PUSH CATCH
• Manufactured to order
• CNC manufactured to IS09001:2015
• Frame options to suit finishing requirements
• Fully matt powder coated,suitable for finishing on site

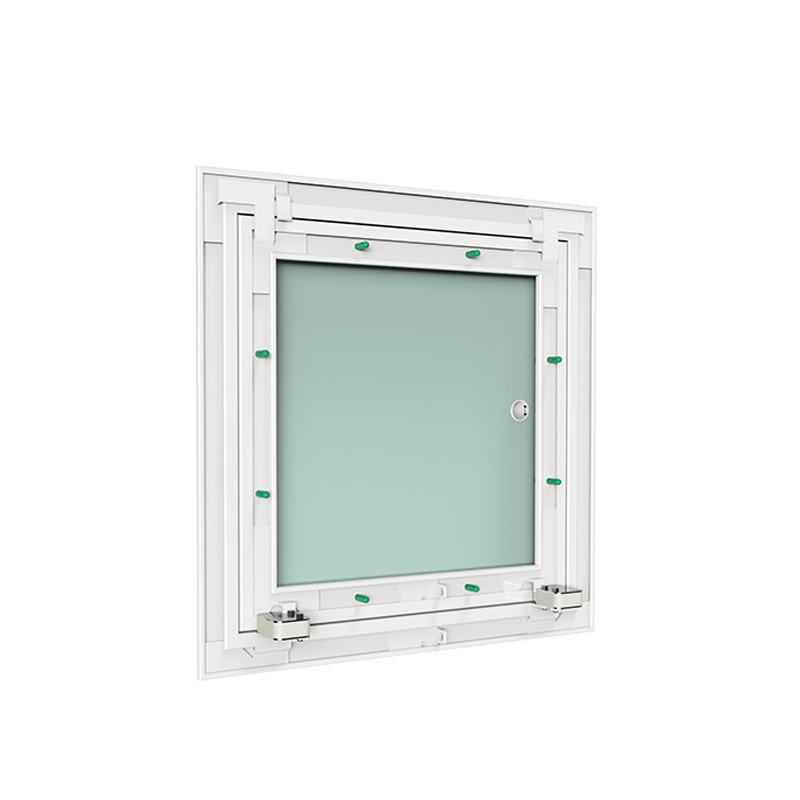

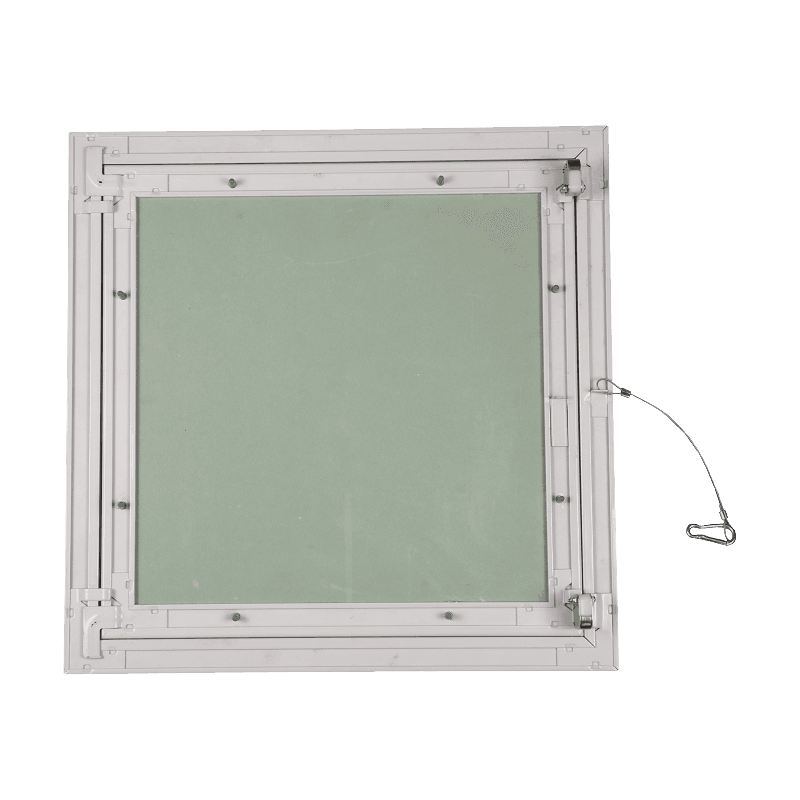

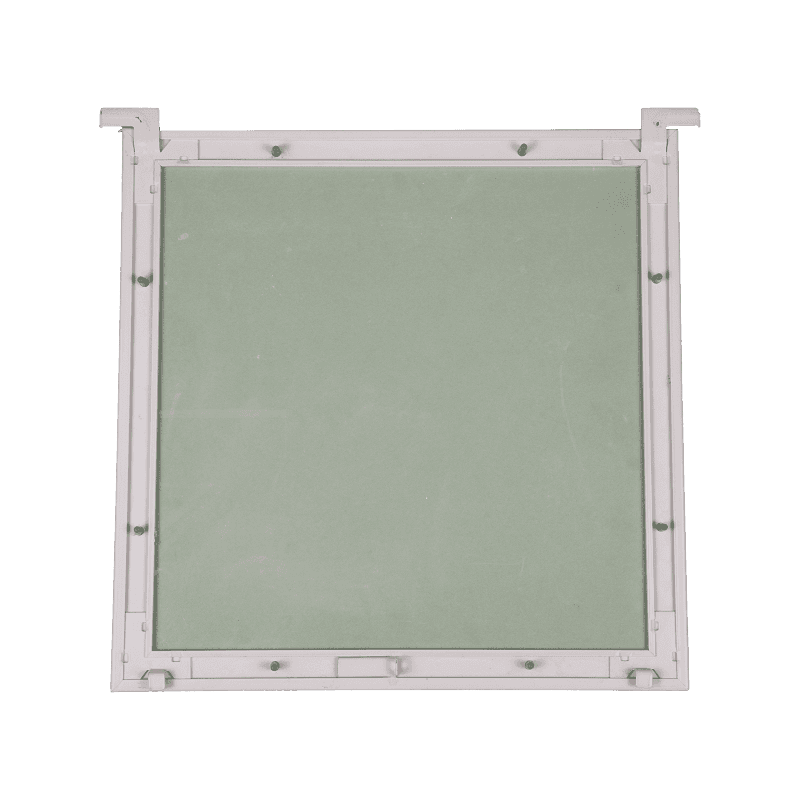

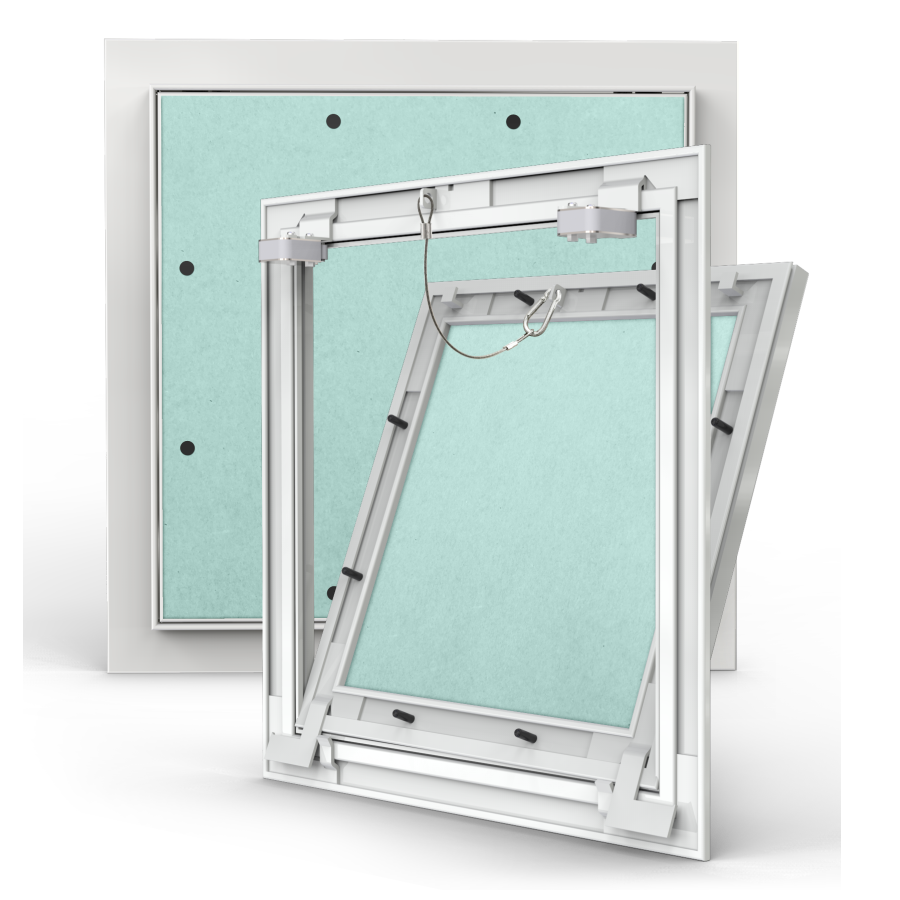

• aluminum frame
• gypsum board: ordinary style(grey)
• fireproof(red)
• waterproof(green)
E-mail : [email protected]
|

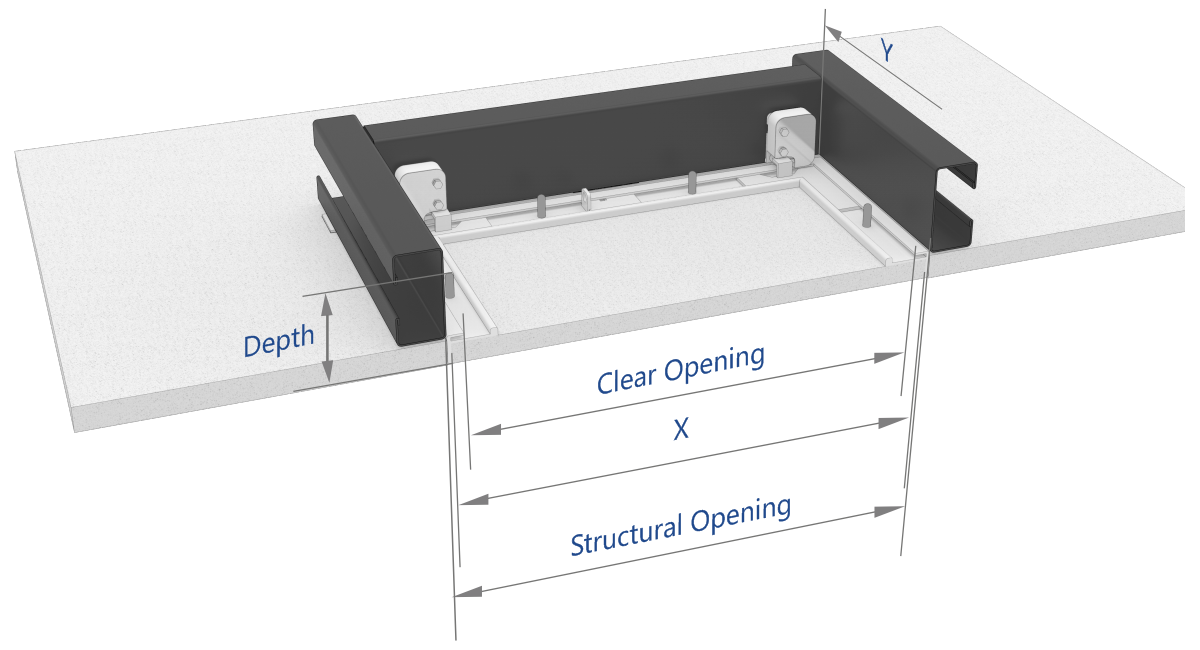

Part No. |
Standard size(mm&inch) |
Structural opening |
X&Y(mm) |
Clear opening |
Depth(mm) |
|
|
FZNFR3030AP |
300x300 |
12x12 |
305x305 |
300x300 |
285*295 |
55 |
|
FZNFR4040AP |
400x400 |
16x16 |
405x405 |
400x400 |
385*395 |
55 |
|
FZNFR4545AP |
450x450 |
18x18 |
455x455 |
450x450 |
440*450 |
55 |
|
FZNFR5555AP |
550x550 |
22×22 |
555x555 |
550x550 |
510*520 |
55 |
|
FZNFR6060AP |
600x600 |
24x24 |
605x605 |
600x600 |
585*595 |
55 |
Bespoke sizes upon request
