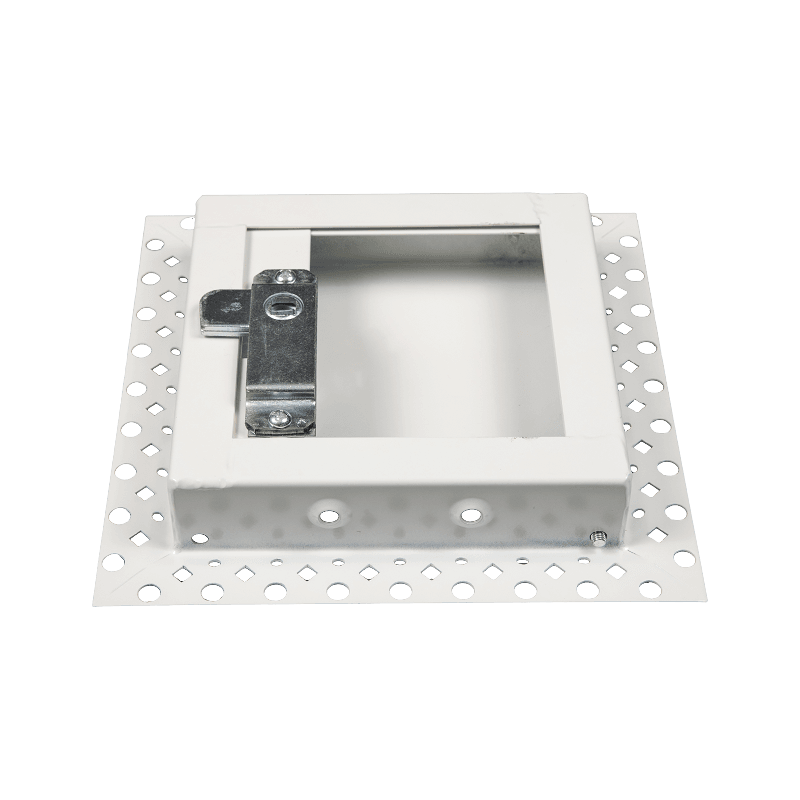

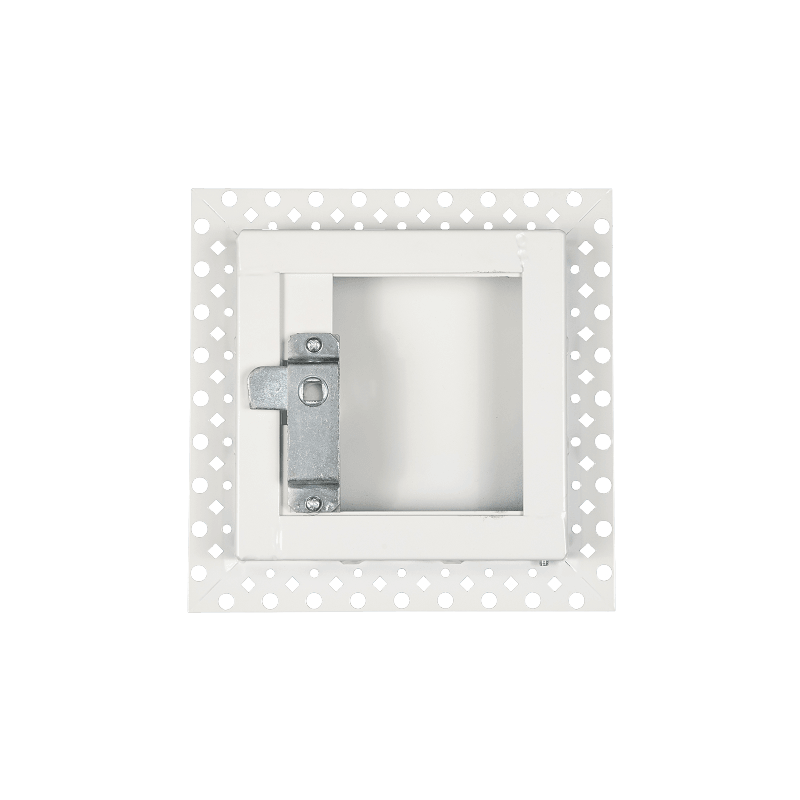

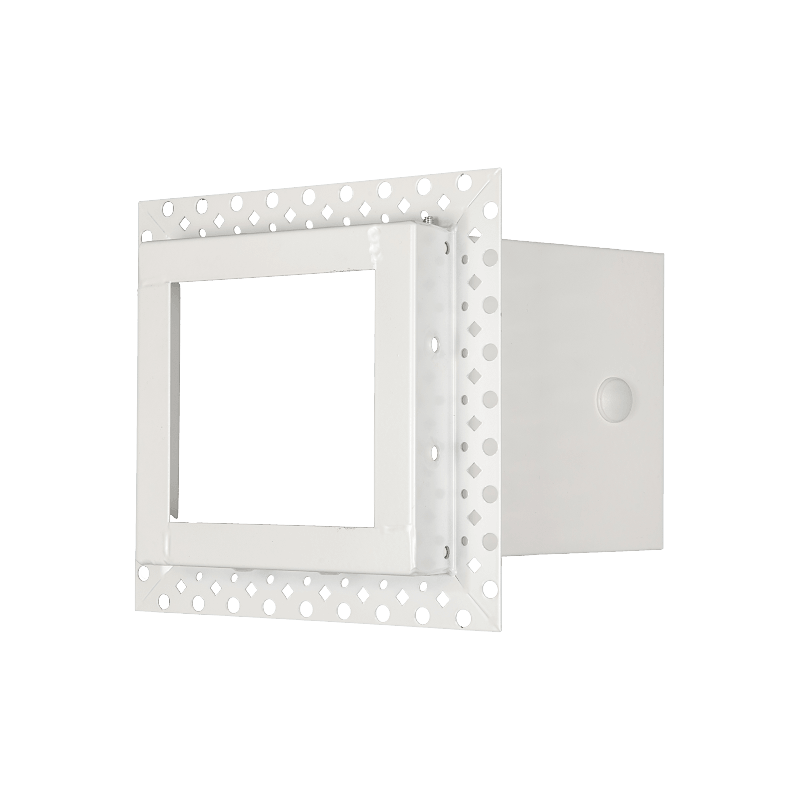

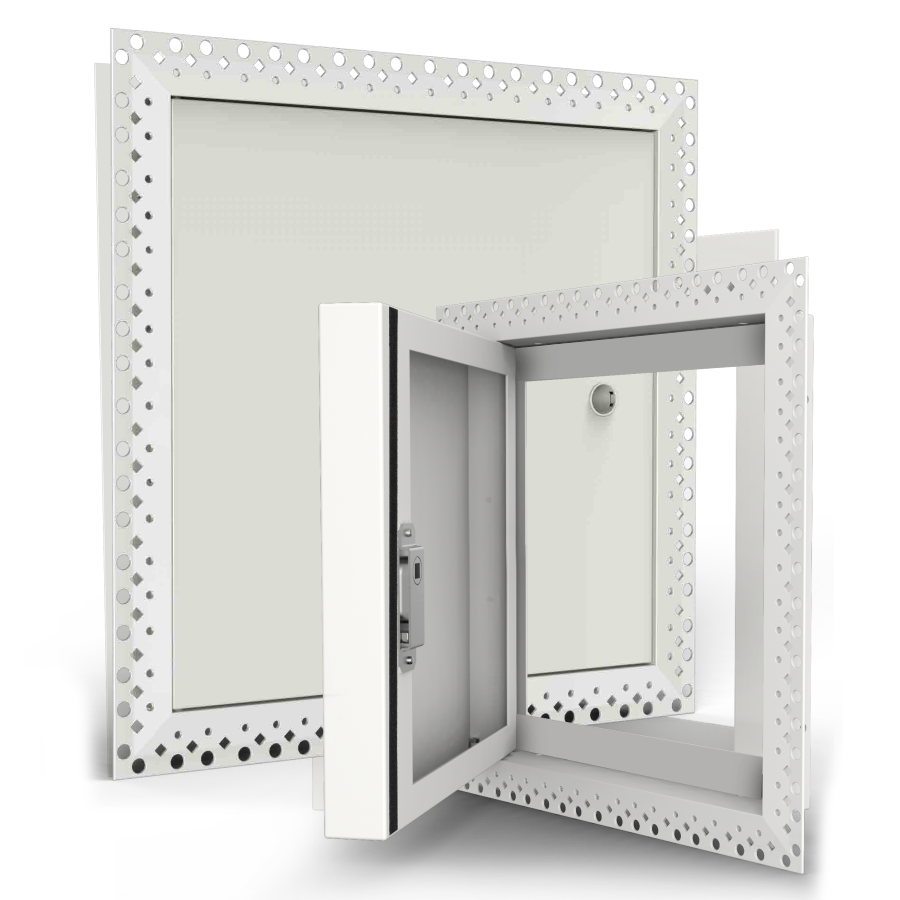

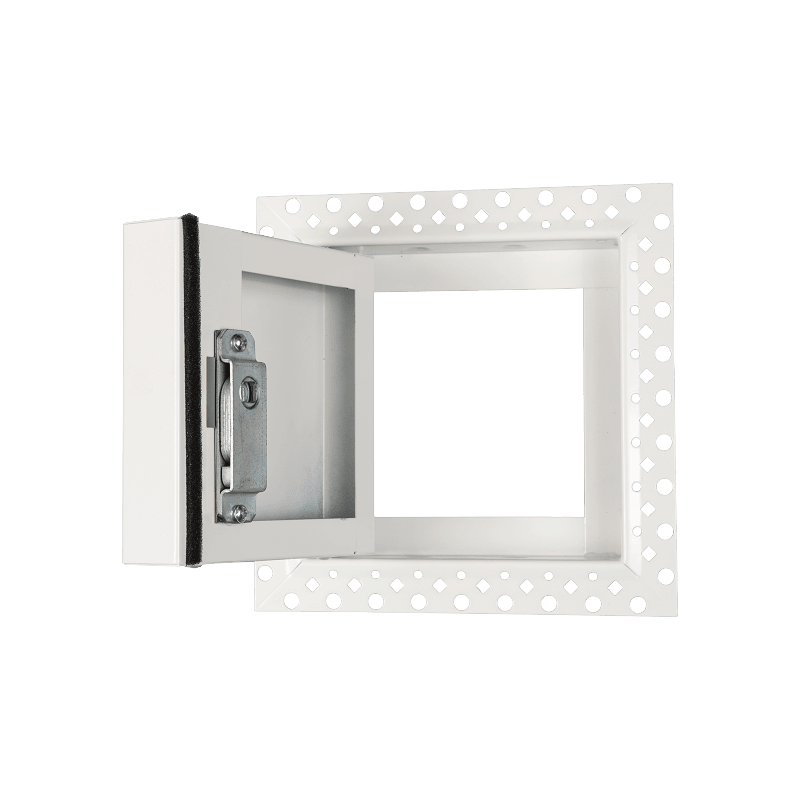

Non Fire Rated Access Panels(Beaded Frame)

Non Fire Rated Access Panels(Beaded Frame)

FEATURES&OPTIONS

SPECIFICATION

• non fire rated option

• Beaded Frame(BF)

• Manufactured to order

• 1.2mm zintec steel

• CNC manufactured to IS09001:2015

• Budget Lock

• Frame options to suit finishing requirements

• Compression seal gasket

• Fully matt powder coated,suitable for finishing on site

E-mail : [email protected]

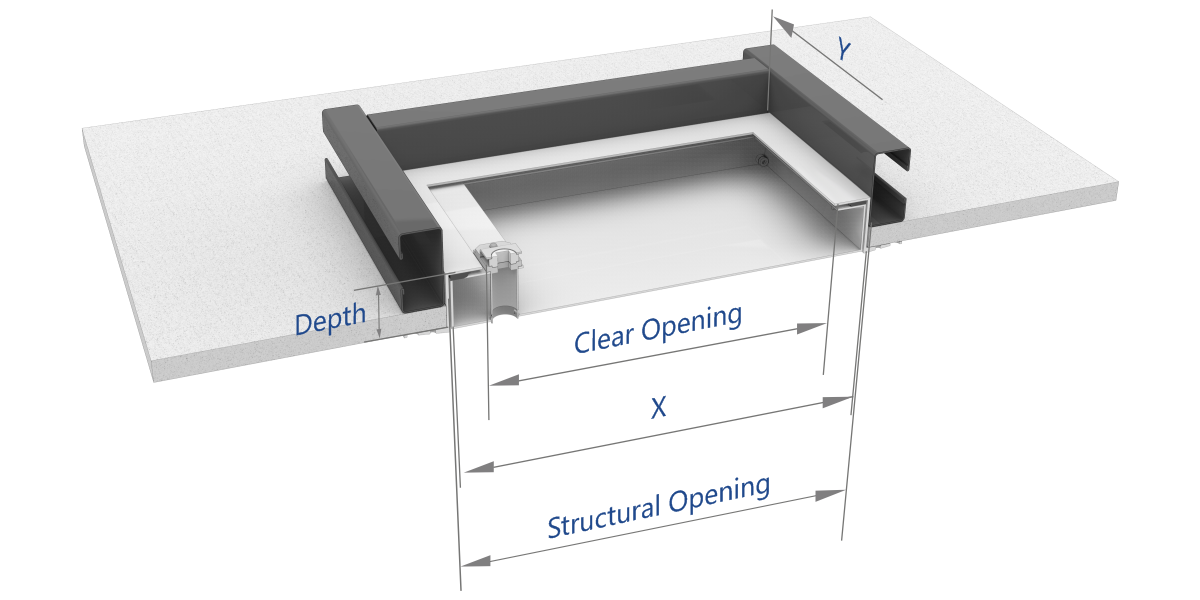

Product Details



Part No.

Standard size(mm&inch)

Structural opening

X&Y(mm)

Clear opening

Depth(mm)

FZNFR2020BF

200x200

8x8

205x205

200x200

140x150

35

FZNFR3030BF

300x300

12x12

305x305

300x300

240x250

35

FZNFR3060BF

300x600

12x24

305x605

300x600

240x550

35

FZNFR4545BF

450x450

18x18

455x455

450x450

390x400

35

FZNFR5555BF

550x550

22x22

555x555

550x550

490x500

35

FZNFR6060BF

600x600

24x24

605x605

600x600

540x550

35

FZNFR6090BF

600x900

24x36

605x905

600x900

540x850

35

FZNFR9090BF

900x900

36x36

905x905

900x900

840x850

35

FZNFR60120BF

600x1200

24x48

605x1205

600x1200

540x1155

35

Bespoke sizes upon request

We are fast growing Non Fire Rated Access Panels(Beaded Frame) manufacturers and China Non Fire Rated Access Panels(Beaded Frame) company, we supply custom Non Fire Rated Access Panels(Beaded Frame) worldwide.
