Wall Access Panel
Wall access panels are commonly found behind bathroom vanities, kitchen cabinets, or in hallways to provide access to plumbing, electrical, or HVAC components located within the walls.
They can be as...
2024.07.20
FEATURES&OPTIONS
SPECIFICATION
• Beaded Frame(BF)/Picture Frame (PF)
• Manufactured to order
• 1.2mm zintec steel
• CNC manufactured to IS09001:2015
• Budget lock+push catch
• Steel Key
• Frame options to suit finishing requirements
• Fully matt powder coated,suitable for finishing on site
• Anti-bacterial specialist coating option

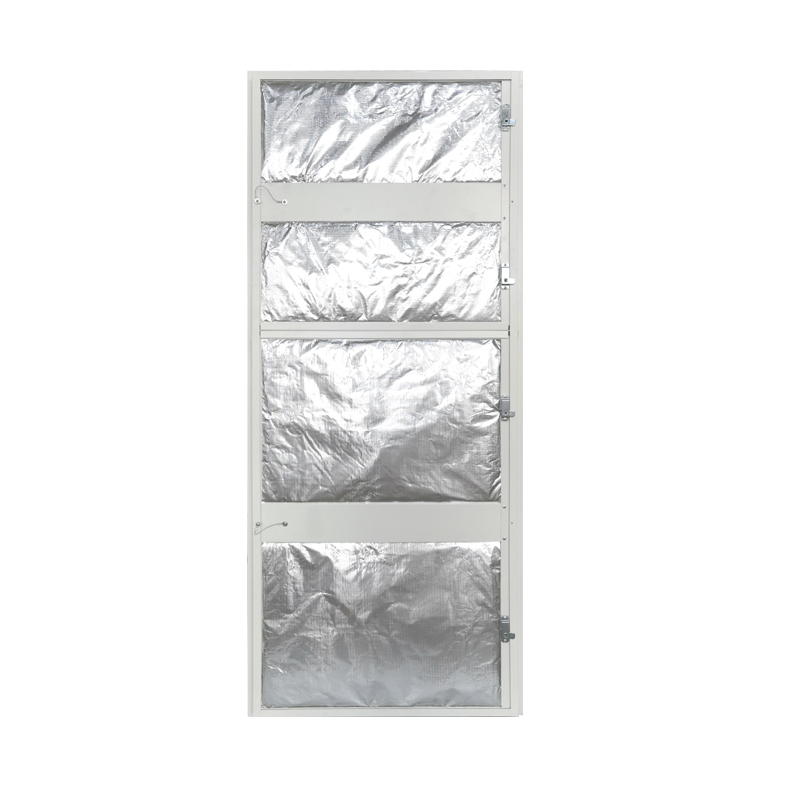

• Acoustic 32dB / Non Acoustic
Structural opening | X&Y(mm) | Clear openingmm) | Depthmm) |
1910×610 | 1900×600 | 1850×550 | 45 |
1833x600 | 1823x590 | 1733x540 | 45 |
1800x600 | 1790x590 | 1740x540 | 45 |
1800x680 | 1790x670 | 1740x620 | 45 |
2000x600 | 1990x590 | 1940x540 | 45 |
1995x630 | 1985x620 | 1935x570 | 45 |
1995x650 | 1985x640 | 1935x590 | 45 |
1995x680 | 1985x670 | 1935x620 | 45 |
1450x740 | 1440x730 | 1390x680 | 45 |
1300x800 | 1290x790 | 1240x740 | 45 |
1400x600 | 1390x590 | 1340x540 | 45 |
1900x710 | 1890x700 | 1840x650 | 45 |
1425x910 | 1415x900 | 1365x850 | 45 |
1432x697 | 1422x687 | 1372x637 | 45 |
1832x632 | 1822x622 | 1772x572 | 45 |
2010x610 | 2000x600 | 1950x550 | 45 |
2010x810 | 2000x800 | 1950x750 | 45 |
2010x810 | 1890×900 | 1840×850 | 45 |
1797x605 | 1787×595 | 1737×545 | 45 |
1900x640 | 1890×630 | 1840×580 | 45 |
2010x1210 | 2000×1200 | 1950×1150 | 45 |
2010x1410 | 2000×1400 | 1950×1350 | 45 |
2010x1610 | 2000×1600 | 1950×1550 | 45 |
1900/1136x910 | 1890/1126x900 | 1840/1076x850 | 45 |
